- In business since2010
- Projects installed300+
- Countries delivered to25+
- Employees50+
Adencoat designs, builds, installs and commissions powder and liquid paint booths, curing ovens, pretreatment lines and cardan chain conveyors. Every dimension follows three inputs you give us: the largest part, the hanging pattern and the line speed.
Our product lines
Each line is engineered from the same three inputs, so a booth bought today fits the oven and conveyor added later.
All products-

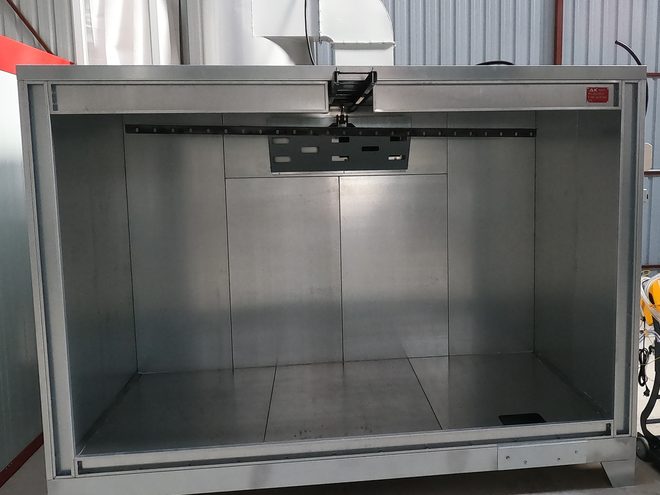

Powder coating booths
Cyclone or cartridge-filter recovery. Manual and robotic. 12,000 m³/h extraction, 1.5 mm AISI 430 body
Manual cyclone booths for job coaters, cartridge-filter booths where a cyclone does not fit, and automatic booths with robots or reciprocators on conveyor lines. Recovery method, opening size and extraction are set from your part and your colour-change routine.
-

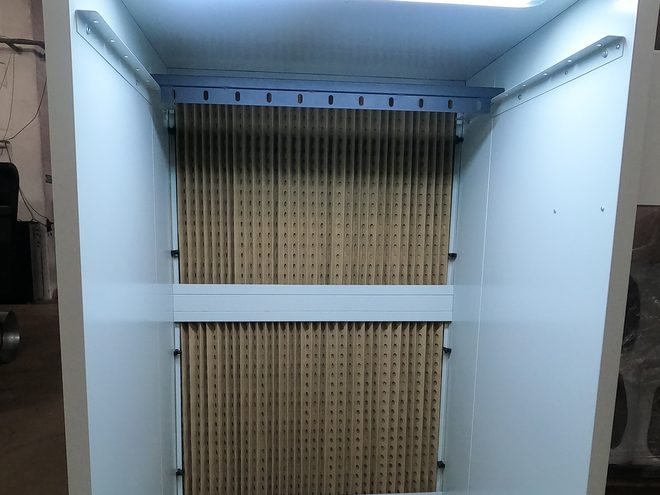

Liquid paint booths
Paper-filter, dry-filter or water-curtain. Three-stage filtration: paper, EU-3, metal. LED lighting
Paper-filter booths with three-stage filtration for manual and automatic liquid painting, dry-filter booths for shops that change filters often, and water-curtain booths for high paint use. Extraction, lighting and filter area follow the part size and the paint consumption.
-

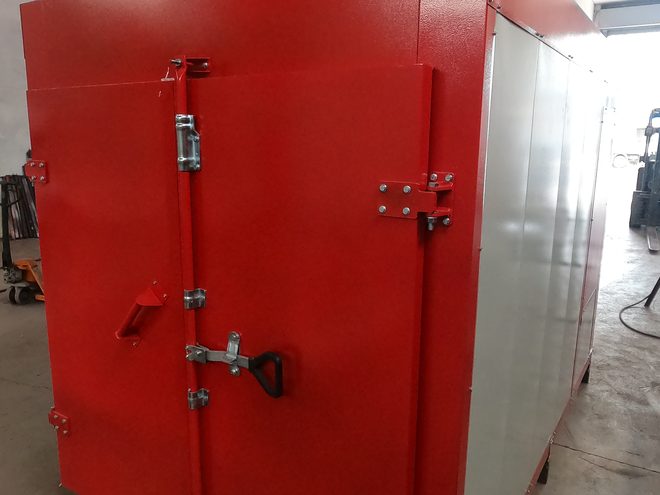

Curing and drying ovens
Box-type, tunnel and U-turn. 250 °C, 150 mm rock wool sandwich panels, thermoblock heating
Box-type ovens for batch work up to 250 °C, tunnel ovens for continuous curing and drying on conveyor lines, and U-turn ovens where entry and exit must share a wall. Length, cross-section and heating power follow the line speed, the cure time and the batch weight.
-

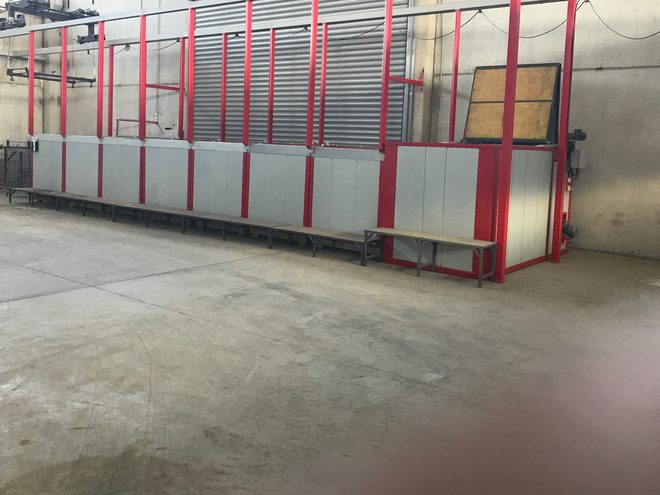

Pretreatment lines
Spray washing lines and dip tanks. Two-stage spray lines, tunnel washers
Spray washing tunnels and dip tanks that remove oil, dirt and rust before coating, with a drying oven at the exit. Stage count and chemistry follow the metal, the coating and the corrosion class you have to reach.
-

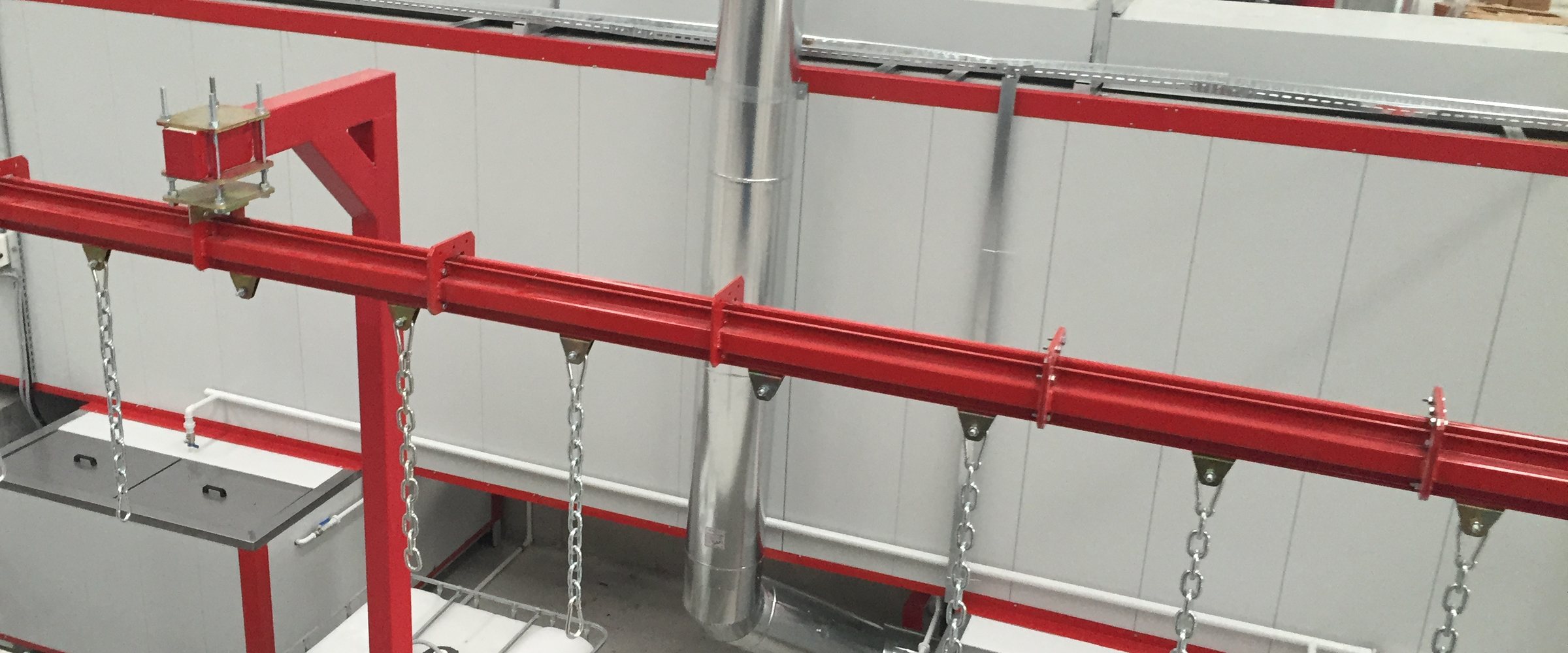

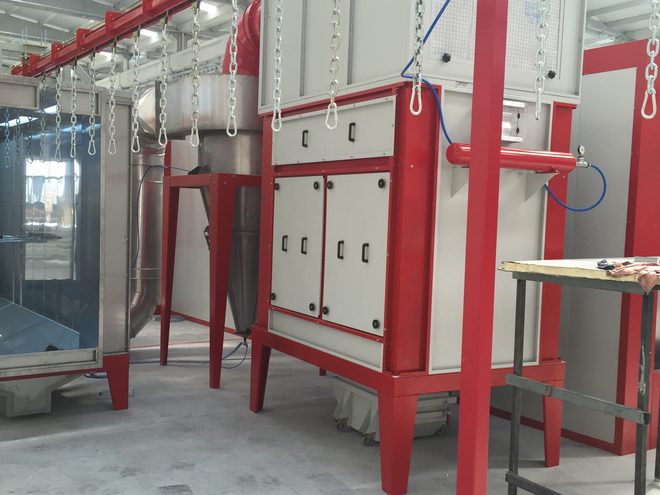

Conveyors and complete plants
Cardan chain conveyor, PLC control panel, turnkey installation and commissioning
Cardan chain conveyors for heavy and bulky parts, PLC-controlled panels, and complete lines from washing to curing delivered, installed and commissioned as one project. We also dismantle, re-engineer and reinstall existing lines.

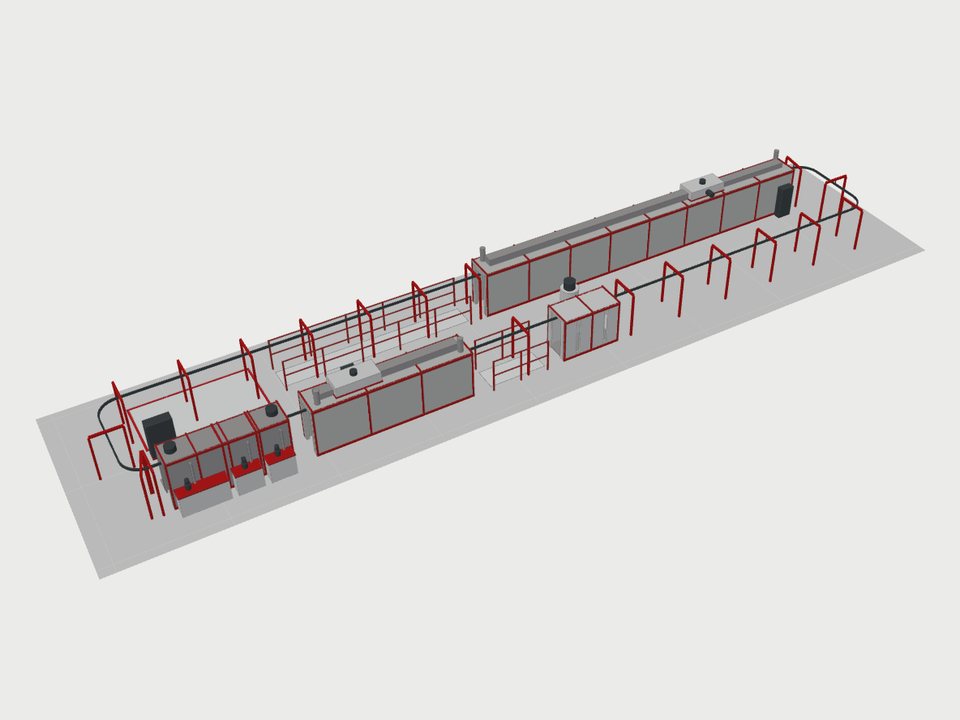

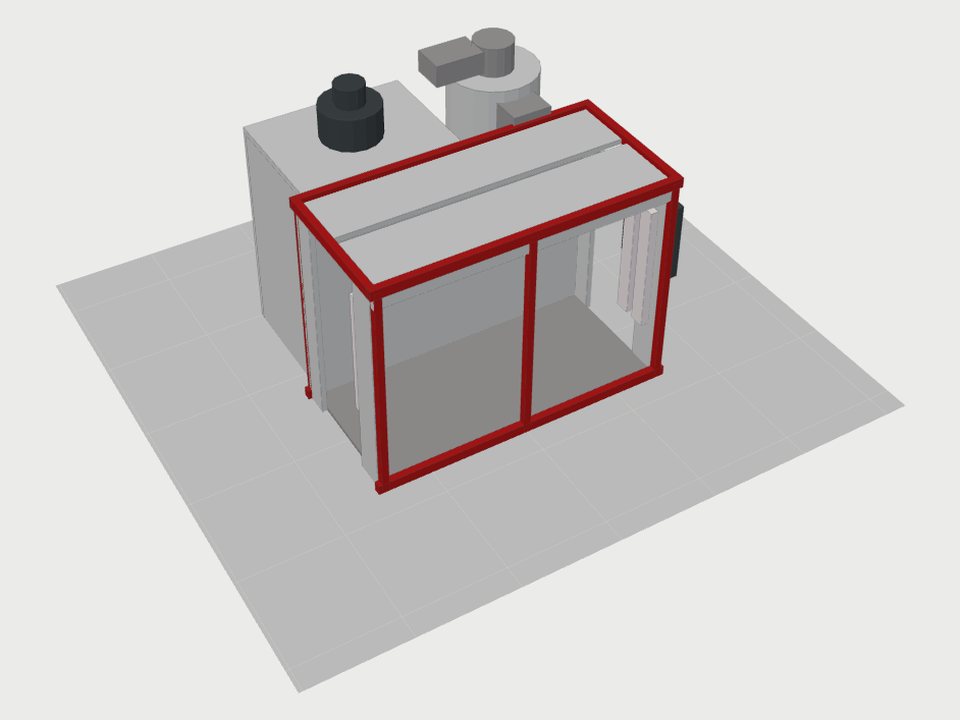

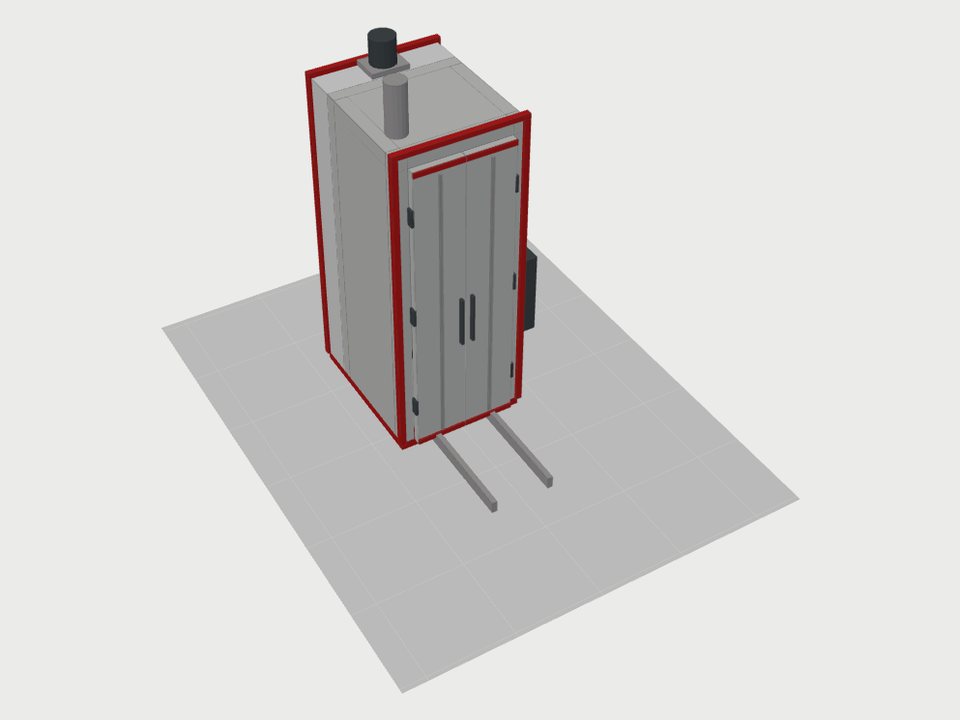

Size your equipment in 3D before the first call
Three configurators run the same sizing rules our engineers use. Pick the options in a form or describe the job in your own words to the design assistant; the result is checked, drawn in 3D and ready to send to a quote.
Who we build for
- Job coatersA cyclone booth and a box oven sized to the widest part mix you take in, delivered as knock-down units your team can move later.
- Aluminium extruders and architectural coatersHorizontal lines with spray pretreatment, tunnel curing and cardan conveyors for profiles up to the length you extrude.
- Metal fabrication OEMsConveyorised lines for furniture, enclosures, HVAC and agricultural parts, sized to the part family and the daily output.
- Automotive tier suppliersPretreatment plus powder or liquid lines with PLC traceability for brackets, seats, chassis parts and wheels.
- Appliance manufacturersHigh-throughput tunnel ovens and spray pretreatment for panels, drums and frames, with installation on your production calendar.
Technical data

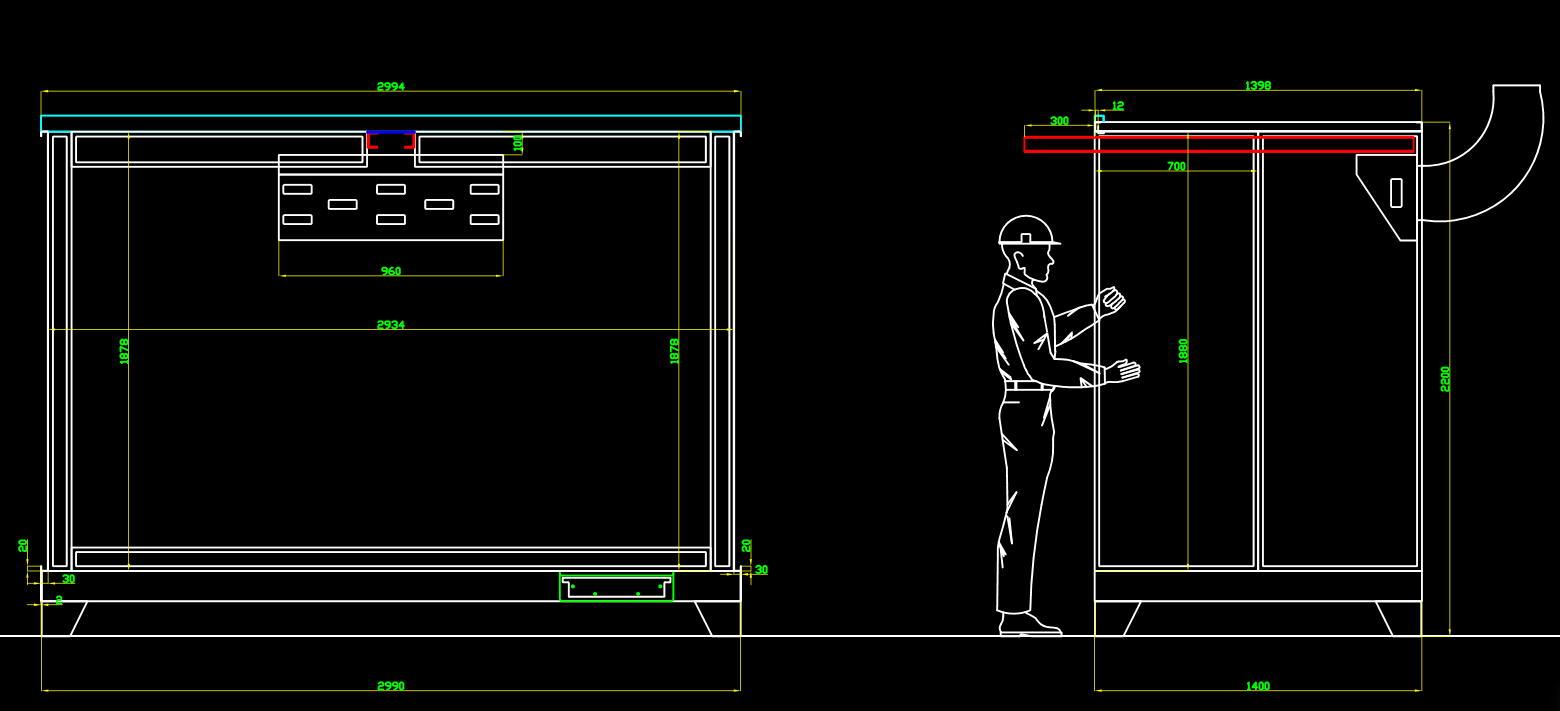

Every product page carries its specification table before you ask for it. This is the standard cyclone booth; the drawing below is the one we build from.
Classified zones use ATEX-certified components, and every delivery comes with a CE Declaration of Conformity. Booths are built to EN 16985:2018, ovens to EN 1539:2015 and automatic powder equipment to EN 50177.
Product page
| Length | 3,000 mm |
|---|---|
| Height | 2,200 mm |
| Width | 1,400 mm |
| Filters | 12 cartridges, Ø100 x 1,900 mm |
| Cyclone hopper | 1 |
| Extraction airflow | 12,000 m³/h |
| Extraction fan | 1 x 4 kW |
| Lighting | 2 x 40 W sealed fittings, 2 sets |
| Body | 1.5 mm AISI 430 |
| Base and legs | 2 mm powder-coated sheet |
| Booth air velocity | 0.5 m/s, low pressure |
| Assembly | Knock-down build, bolted assembly |

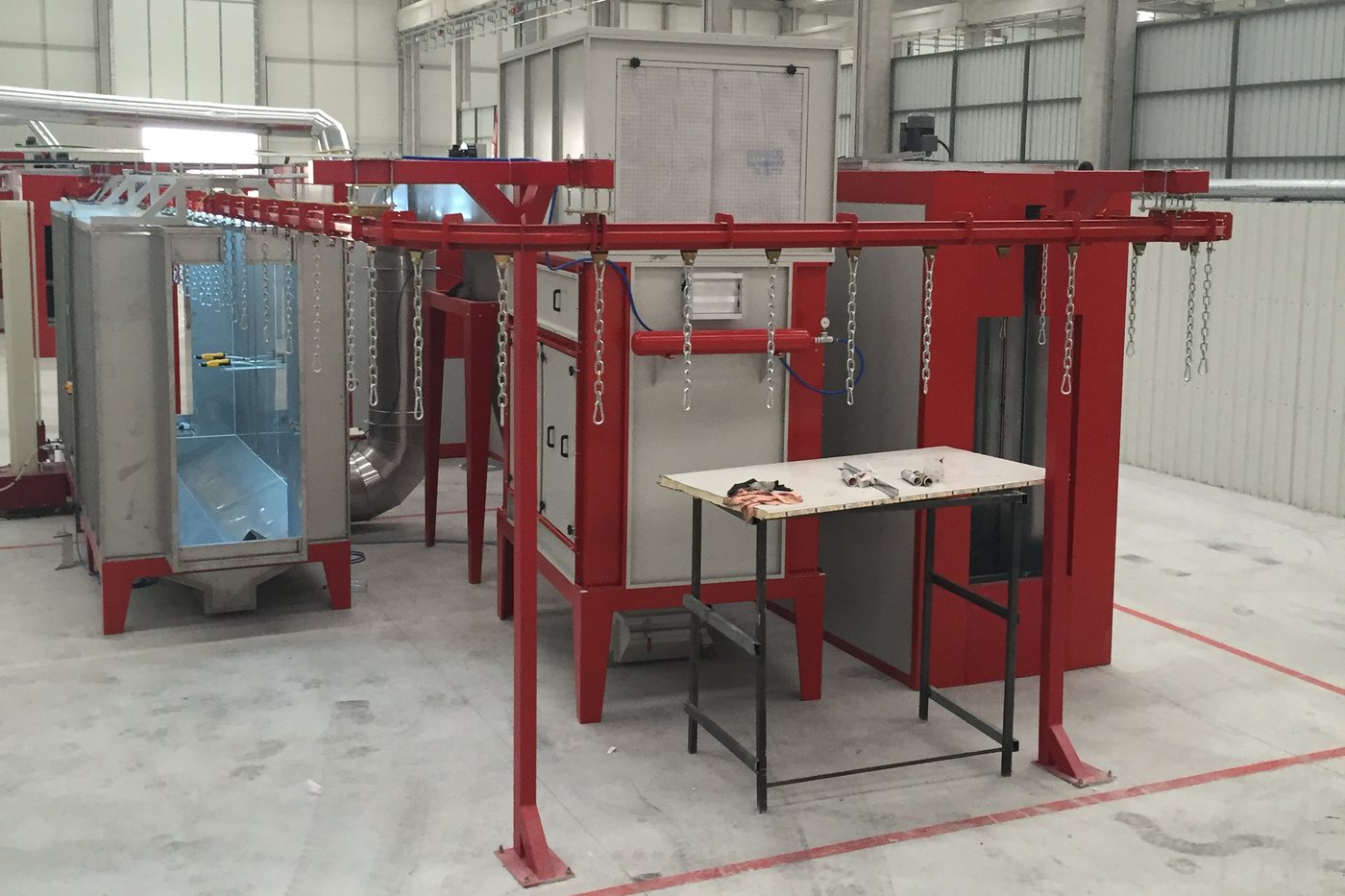

A spray washing line, a 10 m dryer, a cyclone booth and a 20 m curing oven on one conveyor
Customer names are not published. Every project is described by its equipment list.
| Pretreatment | 2-stage spray washing line |
|---|---|
| Drying | 10 m spray drying oven |
| Application | Cyclone-type robotic powder booth |
| Curing | 20 m straight tunnel curing oven |
| Handling | Cardan chain conveyor line |
| Control | PLC-controlled electrical panel |

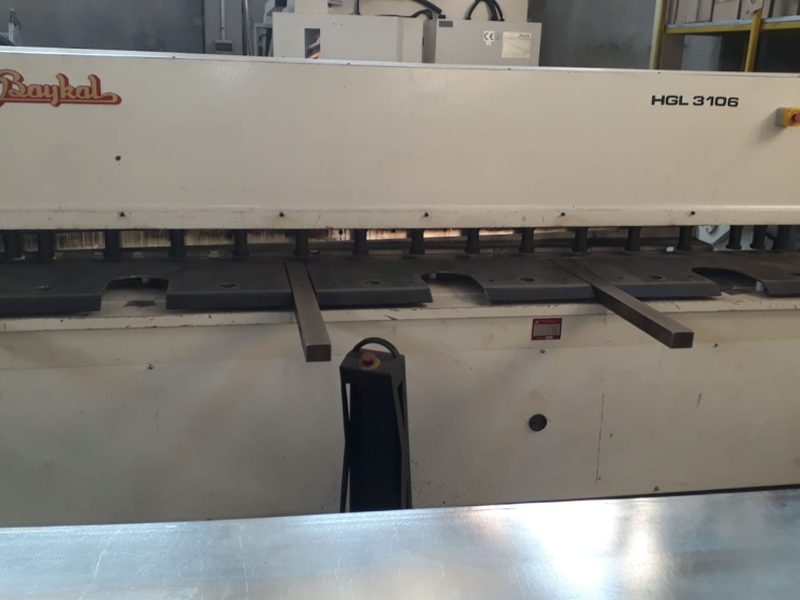

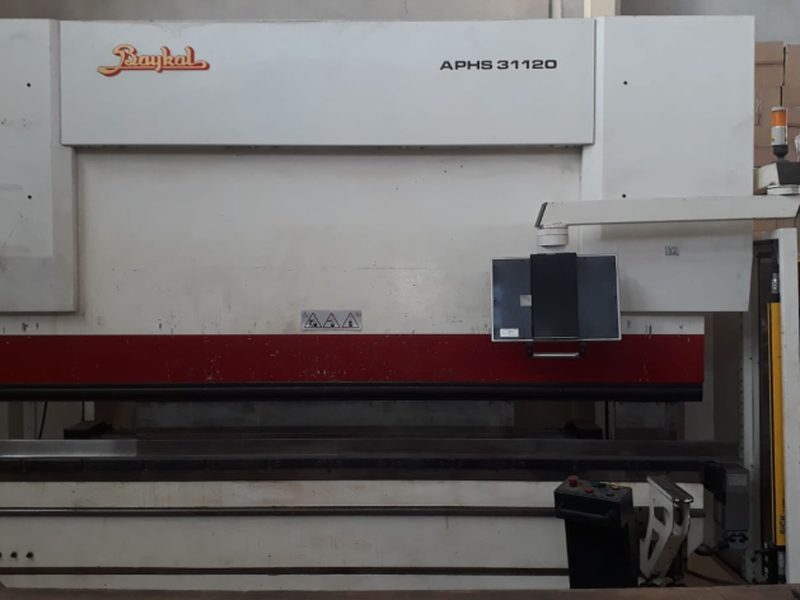

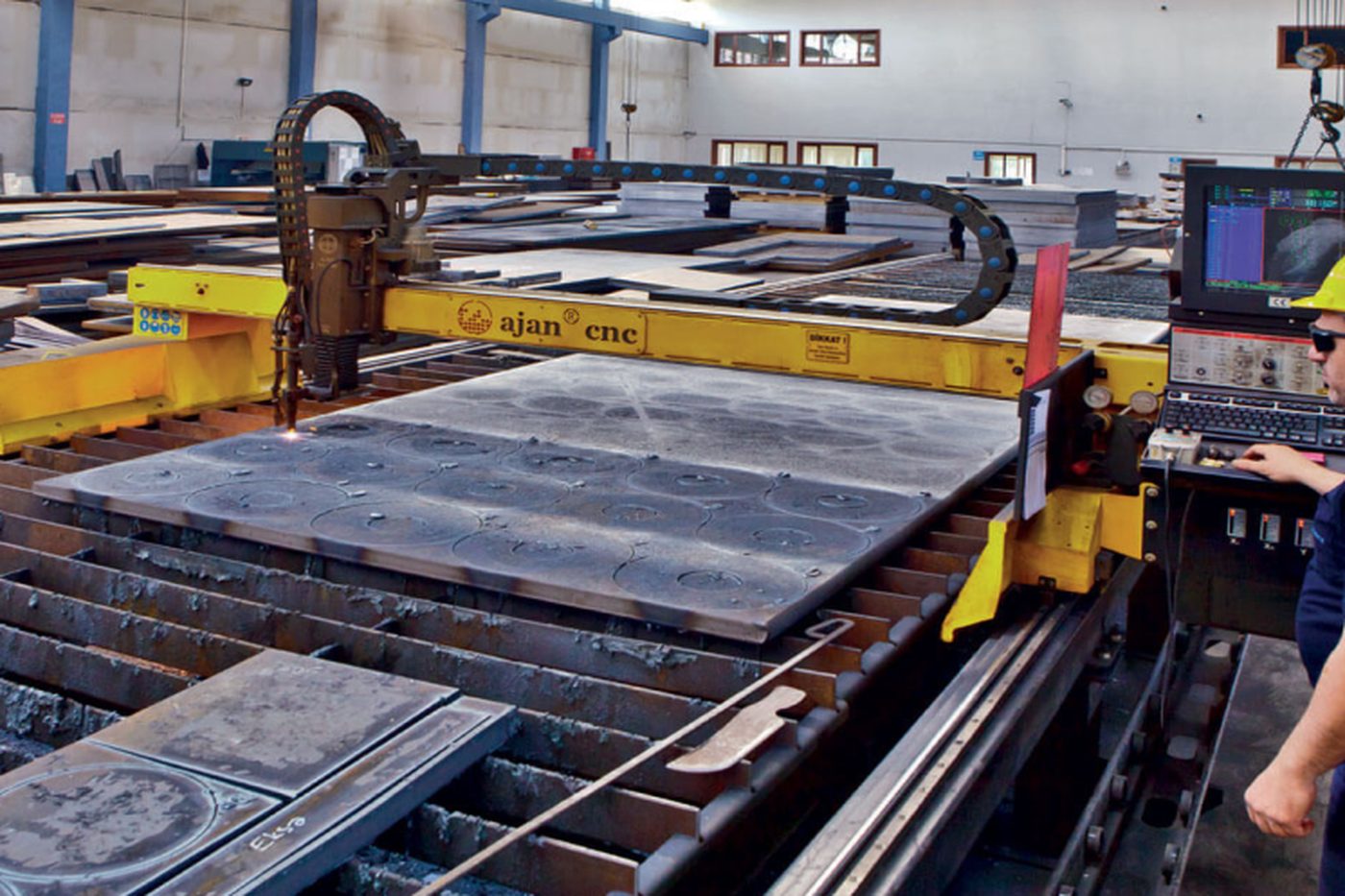

Welded in our own workshop
Panels, ducts, booth bodies and oven frames are cut, bent and welded in our own workshop on a CNC press brake, a guillotine shear and welding stations, then assembled and tested before dispatch. Welding is carried out by TÜV-qualified welders under WPQR-documented procedures.
Ask for a proposal
Leave your name and a phone number or e-mail, and our engineers will contact you to talk through your parts and output. To send part sizes and drawings straight away, use the full form on the contact page.
Prefer to talk first? Call +90 216 599 19 69 on weekdays, monday to friday, 08:30 to 18:00. Full form
