Liquid paint booths
A liquid paint booth gives the painter clean, lit, extracted air and keeps overspray out of the shop and the stack. We build paper-filter booths with three filtration stages, dry-filter booths with replaceable cassettes and water-curtain booths that wash the overspray out of the air, for manual and automatic application of solvent and water-based paints.
Paper-filter, dry-filter or water-curtain. Three-stage filtration: paper, EU-3, metal. LED lighting
-
Paper-filter liquid paint booth
Booth with three-stage filtration and LED lighting for manual or automatic liquid paint application.
Product pageSize 1,500 x 2,000 x 1,800 mm Electrical load 2.2 kW Filtration 3 stages -
Dry-filter liquid paint booth

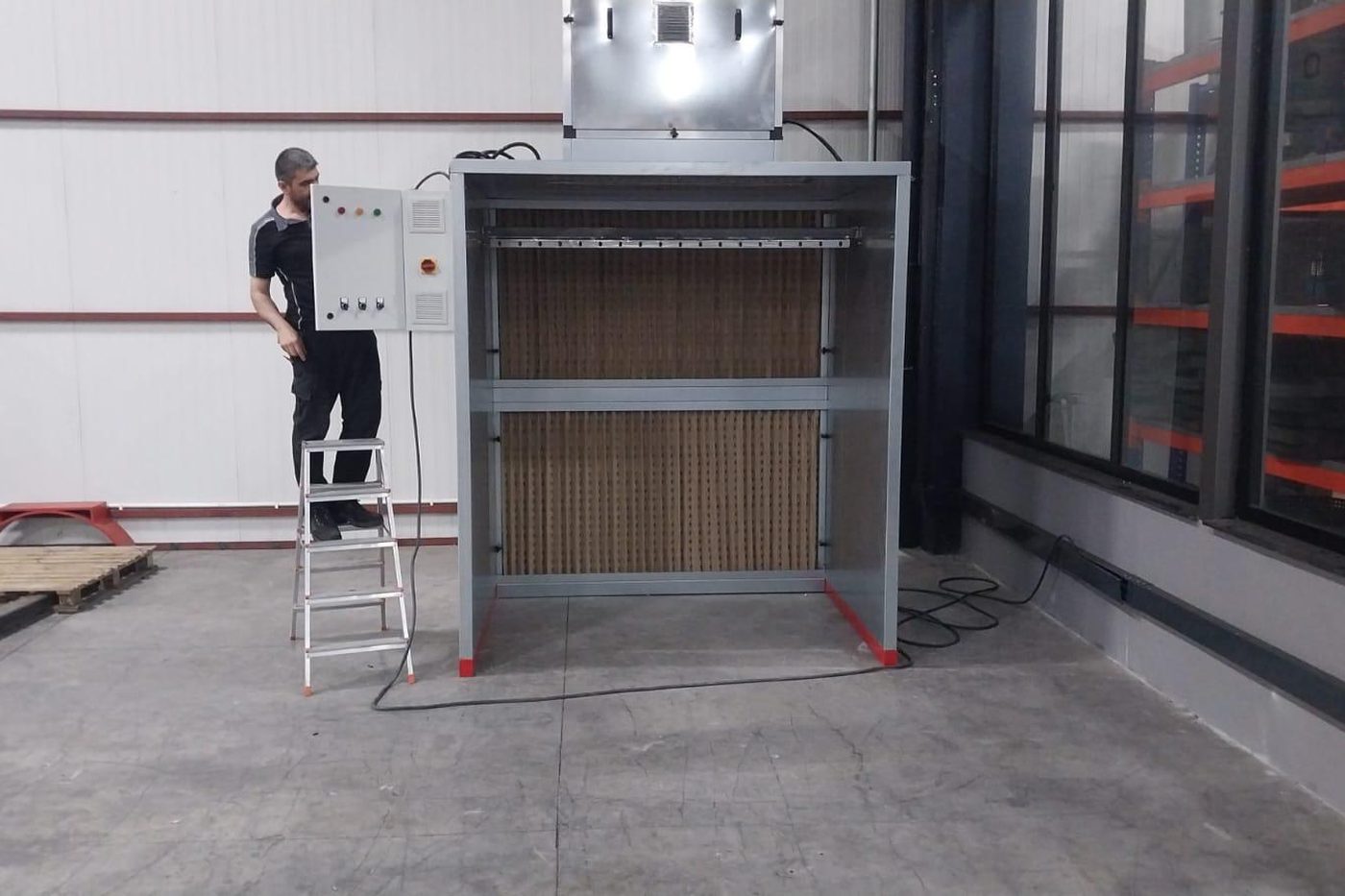

Liquid paint booth working with dry filter cassettes instead of paper filters.
Product pageFilter Dry filter cassettes Size Per project Lighting LED -
Photo pending
Water-curtain liquid paint booth
Liquid paint booth that washes the overspray out of the air with a water curtain on the back wall.
Product pageOverspray capture Water curtain Paint waste Collected as sludge Size Per project
What it is for
Parts and situations this category is built for.
- Machine frames, cabinets, tanks and fabricated steel that receive wet paint
- Parts too large or too heat-sensitive for powder
- Mixed batches where colour and gloss change often
Who buys this
The buyer groups we most often size this category for.
- Machine builders and fabricators painting their own product
- Job painters serving several OEMs
- Plants adding a wet line next to a powder line
Questions we get before the quote
Answered in full. The sizing guide goes deeper. Sizing guide
Paper filter or dry filter?
Paper (accordion cardboard) filters hold a large amount of overspray at low cost and are the usual choice for manual booths; our standard booth adds an EU-3 pre-filter and a metal filter behind them. Dry-filter cassettes have a smaller footprint and are quicker to swap, which suits shops that replace filters often.
When is a water-curtain booth the better choice?
When the parts are large and the paint use is high. A sheet of water on the back wall carries the overspray into a tank, so there are no filter pads to replace; instead the water is treated and the paint is removed from the tank as sludge.
What about VOC rules in the EU?
The booth handles extraction and filtration; solvent accounting under the Industrial Emissions Directive depends on your annual solvent use and is a matter for your operating permit. We document the extraction airflow and filter classes so your permit file has the numbers it needs. On request we supply an emission-measurement port on the stack.
How much electrical load does a booth draw?
Our standard paper-filter booth draws 2.2 kW for the fan and LED lighting. Larger booths and heated air make-up change that figure, so the spec table on each product page states the load for that size.
Quote for liquid paint booths
Send the largest part, the quantity per shift and the line speed if you have one. Drawings help; photographs of the parts are enough to start.
